       Ultrasonic welding of metals

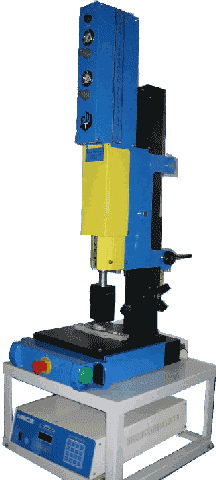

Press of UZPK-12

Press of UZPK-12 is the ultrasonic welding press of middle class. Allows to weld the details of plastics a perimeter to 400 ìì. Configuration of details which weld, simply determines a type and sizes of the proper instrument - waveguide ( the sonotrod) and welding support for fixing of detail on a welding table. Setting allows also to execute other technological operations - gobbings of metallic details in plastic basis, riveting and cutting of polymeric materials.
A main difference of new model is possibility of change of welding (time/energy, pressure of welding) parameters during a welding impulse. A necessity herein can arise up at the choice of the technological modes depending on materials which unite, and construction of good. UZPK-12 has structural perfections for the facilitation of work of operator-welder:

  • local illumination of working area of welding is set,
  • procedure of tuning and retuning modes of operations of press is simplified,
  • it is taken to a minimum of amount handles of adjusting and management buttons,
  • the width of corps of activator of press is considerably diminished.

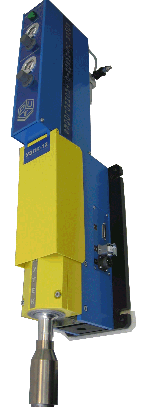

Activator of UZPK-12 A
(the module is for welding )

Activator of UZPK-12 A is autonomous part of press of UZPK-12. It is the independent module for welding of polymers, which can be built-in in an automatic transfer line, aggregate, and others like that. An activator has a collar for fastening and orientation  inplane of fastening.

Технічні характеристики УЗПК-12а

USP-3000

Read

Ultrasonic presses of types USP

The presses of easy (USP-400), middle (USP-750, USP-2000*) and heavy type enter in the class of USP (USP-3000). Excellent feature of group of presses of USP:

  • 5 modes of the ultrasonic welding
  • Module construction
  • High inflexibility of construction
  • Programmable interface
  • Choice of additional accessories

USP

A hand instrument is for welding of HandyStar

Universal instrument for the ultrasonic welding, grabbing, staves of plastics, and also intensifications of process of polymerization of thermoreactive glues at fastening of various details to to bearings constructions.
A welding vehicle adapts oneself to technologies of Customer

Read

 HandyStar

Examples of working surface of
instruments-waveguides (sonotrods):

HandyStar

MSHK-05 - the fluidizer welding to the continuous stitch

Setting of MSHK-05 is intended for welding of thermoplastic fabrics (leatherettes), polietilentereftalate, polyamide, polypropylene, polycarbonate tapes by the continuous stitch of arbitrary configuration. Acoustic fluidizer welding the continuous stitch of MSHK-05 high-quality and reliably "sews" together thermoplastic tapes, letters, and also fabrics and paper, that contain polymers. For connection of polymers additional materials are not needed: glue, filaments. Such equipment is widely used for the production of overall, wares of the medical setting, making of coverage of largenesses from materials of sheets and pellicles.
